H290H08 DANFOSS | HOSE
Manufacturer: DANFOSS
Manufacturer Model #: H290H08

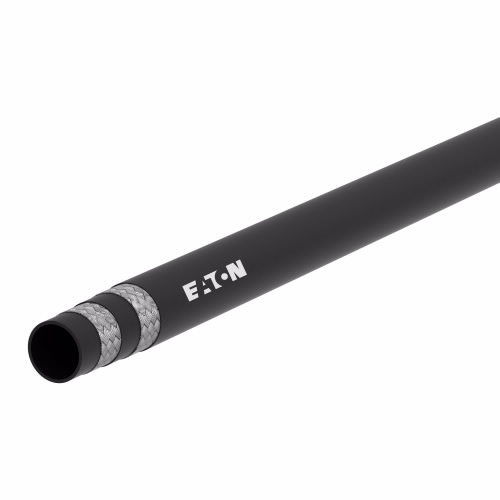

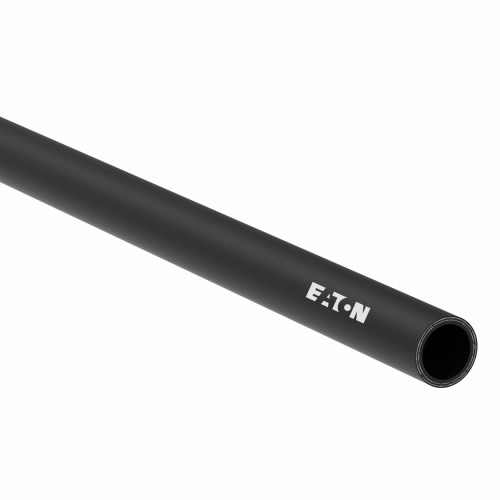

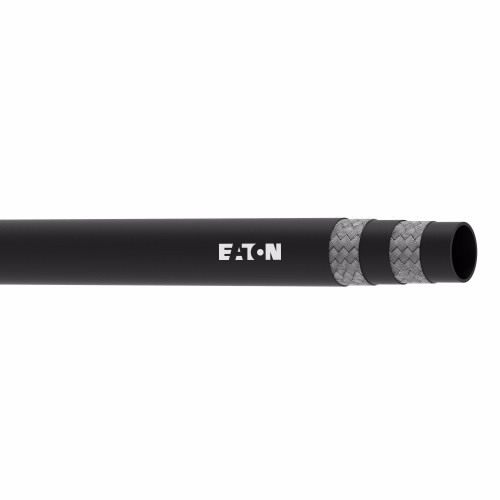

EATON WEATHERHEAD H290H SERIES RUBBER HYDRAULIC BRAIDED HOSE
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
- Abrasion resistance: StandardApplication: Hydraulics, crude fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids.Bend radius min: 7.01 inchBurst Pressure: 17000 psiCertifications: EN853 2ST|SAE 100R2A|SAE 100R16|EN853 2SN|ABS|SAE 100R19|SAE 100R2AT|ISO 1436-1 Type 2SNColor: BlackCompliances: DNV|MSHA Approved|USCGConstruction: 2-ply braidCover Material: ElastomerDash size: -8Eccn: EAR99Impulse cycle life: 400000 cycleInside Diameter: 0.5 inchLay line style: EmbossedLength configuration: 50, 250Outside Diameter: 0.89 inchPackage form: BoxProduct height: 0.89Product height uom: inchProduct length: 50.00Product length uom: footProduct trade name: H290H SeriesProduct weight: 23.00Product weight uom: poundProduct width: 0.89Product width uom: inchQualified hose fittings: ZReinforcement Material: High-tensile steel cordsSub brand: WeatherheadTube material: AQP Inner tubeWorking Pressure: 4250 psiWorking temperature max: 300 degree FahrenheitWorking temperature min: -40 degree Fahrenheit
SunSource Distribution Division: SunSource
⚠️
Warning:
This product can expose you to chemicals on this list, which are known in the State of California to cause cancer and birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
Price: Requires Quote
Our sales team will follow up for pricing support after submitting request.If your product requires a quote for pricing, you can add to your cart and submit a pricing request at checkout. Our team will contact you to provide pricing.
While many of our suppliers are offered throughout North America, some of our suppliers may have order restrictions based on geography. Our customer service team will contact you if there are any issues with your order or quote request.
