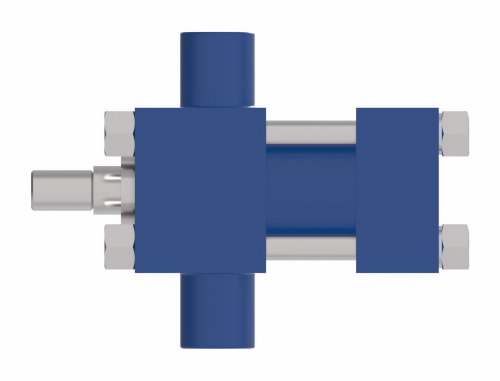

TV17DLNT5KD40000

SXC000T2
  • Adjustable stroke: Yes
  • Application: Hydraulic medium duty application
  • Back to back: No
  • Bore diameter: 1.97 inch
  • Chrome plated bore: Yes
  • Close stroke tolerances: No
  • Construction Type: Tie Rod
  • Cushion location: Cap 3
  • Cushions: Cushioned cap end
  • Eccn: EAR99
  • Model Code: TV17DLNT5KD40000
  • Mounting style: Head Trunnion
  • Net stroke length: 15.748031496063 inch
  • Non rotating: No
  • Piston seal material: Viton-A
  • Piston seal type: Viton wiper double-lipped
  • Port location: Head 1-Cap 1
  • Port type: NFPA Standard SAE/UN
  • Product height: 2.48
  • Product height uom: inch
  • Product length: 22.28
  • Product length uom: inch
  • Product trade name: TV Series
  • Product weight: 12.60
  • Product weight uom: pound
  • Product width: 3.74
  • Product width uom: inch
  • Reciprocating: Yes
  • Rod 1 diameter: 1.42 inch
  • Rod coating: Chrome
  • Rod end style 1: Extended Intermediate Male Metric thread
  • Rod material: Non Case Hardened
  • Rod seal material 1: Viton
  • Rod seal type 1: Viton lip type
  • Single or double rod: Single
  • Sub brand: Vickers
  • Working pressure max: 210 psi
EATON VICKERS TV SERIES TIE-ROD ISO METRIC
Cut cycle times and boost production|Made to last|Reliable and safe operation
